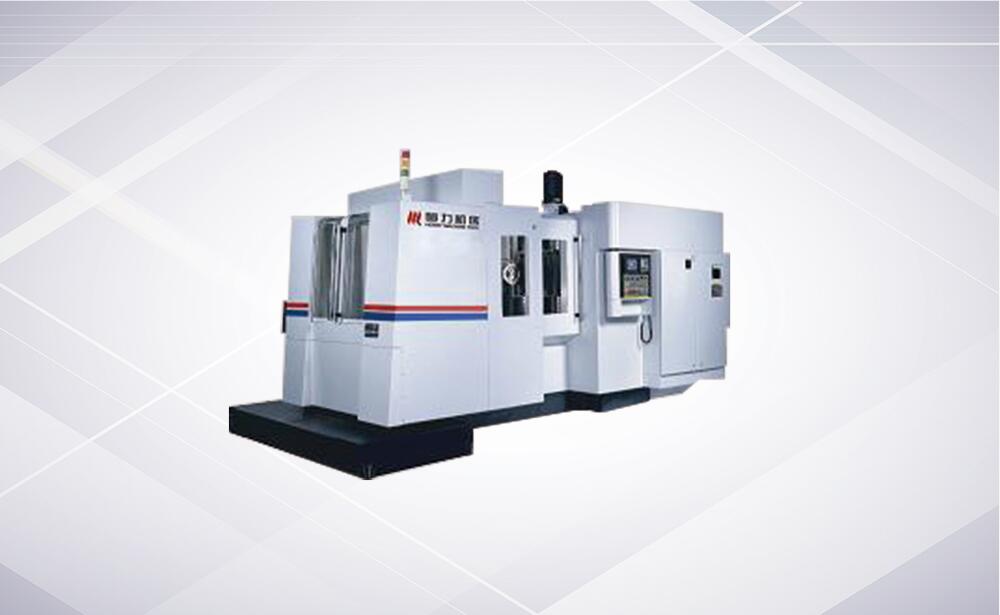

Positive T Horizontal Machining Center

Spindle and triaxial heat balance compensation system

Innovative design, advanced technology

High-performance configuration and easy maintenance

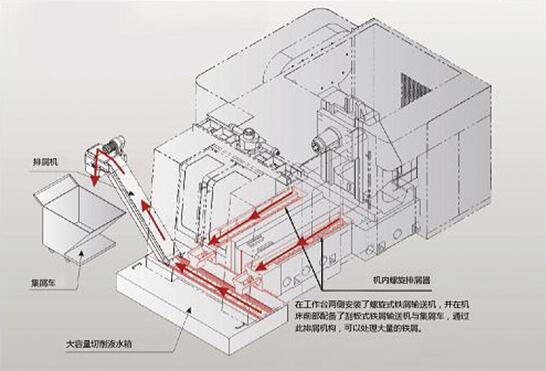

High-performance chip removal system

High rigidity positive T structure design

High-performance control system and human-machine interface

產品介紹

Mechanical Design

Strong, compact body

The main structure castings are made of high quality Meehanite cast iron, with stable structure and permanent quality assurance

Highly efficient processing

Continuously shorten the acceleration/deceleration time of the spindle and change the tool time, increase the feed speed, reduce the auxiliary time, and improve the cutting efficiency

Henry-Machine

Positive T-horizontal machining center parameter table

Specifications HMC63T?series HMC-80T?series
Project name HMC63-T/1 HMC63-T/2 HMC80-T/1 HMC80-T/2
(single table) (Exchange Workbench) (single table) (Exchange Workbench)
Bench Working desk size 630x700mm 630x700mm 800x800mm 800x800mm
Table indexing 1°（0.001°） 1°（0.001°） 1°（0.001°） 1°（0.001°）
Workbench maximum load 1200kg 1200kg 1500kg 1500kg
Maximum workpiece rotation diameter φ1000mm φ1000mm φ1600mm φ1600mm
Travel Positive T layout Workbench rotates left and right (X direction) 1050mm 1050mm 1300mm 1300mm
Spindle head up and down (Y direction) 810mm 810mm 1000mm 1000mm
Columns move back and forth (Z direction) 900mm 900mm 1000mm 1000mm
Spindle (Taiwan) [Synchronization Belt 1:1 Drive] BT50 ring spray Spindle bearing inner diameter 100mm 100mm 100mm 100mm
Maximum speed 6000rpm 6000rpm 6000rpm 6000rpm
Spindle centerline to table distance 120~930mm 0~810mm 120~1120mm 0~1000mm
Distance from the main bearing surface to the center of the table 130~1030mm 130~1030mm 200~1200mm 200~1200mm
Fast moving speed X direction, Y direction, Z direction 36m/min 36m/min 36m/min 36m/min
B axis 10r/min 10r/min 10r/min 10r/min
Magazine Tool selection method random random random random
Pull type Type MAS 2 Type MAS 2 Type MAS 2 Type MAS 2
Number of tools 40[60] 40[60] 40[60] 40[60]
Maximum tool diameter (adjacent) φ115mm φ115mm φ115mm φ115mm
Maximum tool diameter (lead empty knife) φ250mm φ250mm φ250mm φ250mm
Maximum tool length 450mm 450mm 450mm 450mm
Maximum tool weight 25kg 25kg 25kg 25kg
Tool change time (tool to knife) varies with tool weight 2.5s 2.5s 2.5s 2.5s
Tool change time (cut to cut) varies with tool weight 6s 6s 6s 6s
APC Pallet exchange 2-sided rotation 2-sided rotation
Pallet exchange time 15s 15s
Positioning accuracy (GB) X direction, Y direction, Z direction 0.01mm(full course) 0.01mm(full course) 0.012mm(full course) 0.012mm(full course)
Repeatability X direction, Y direction, Z direction 0.006mm(full course) 0.006mm(full course) 0.008mm(full course) 0.008mm(full course)
CNC system ?FANUC system，SIEMENS system，Mitsubishi?system

Configuration list

Standard configuration Optional configuration
Spindle speed 6000RPM Spindle speed 8000RPM
Spindle airtight system Three-axis grating
Spindle roller track Fourth axis scale
Worktable 1° graduation Spindle outside blowing system
Cutting fluid ring spray Spindle Center Outlet System
Scraper drainage system FANUC 31IMD
Chip collection trolley ZF gearbox
nternal screw chip removal system Spindle oil cooler
Internal oil and water separation system Triaxial hollow cooling system
Roof punch system
Water separator
M30 automatic disconnection system
working lamp
Warning Light
Electric box heat exchanger
?FANUC OIMD
