組合機床

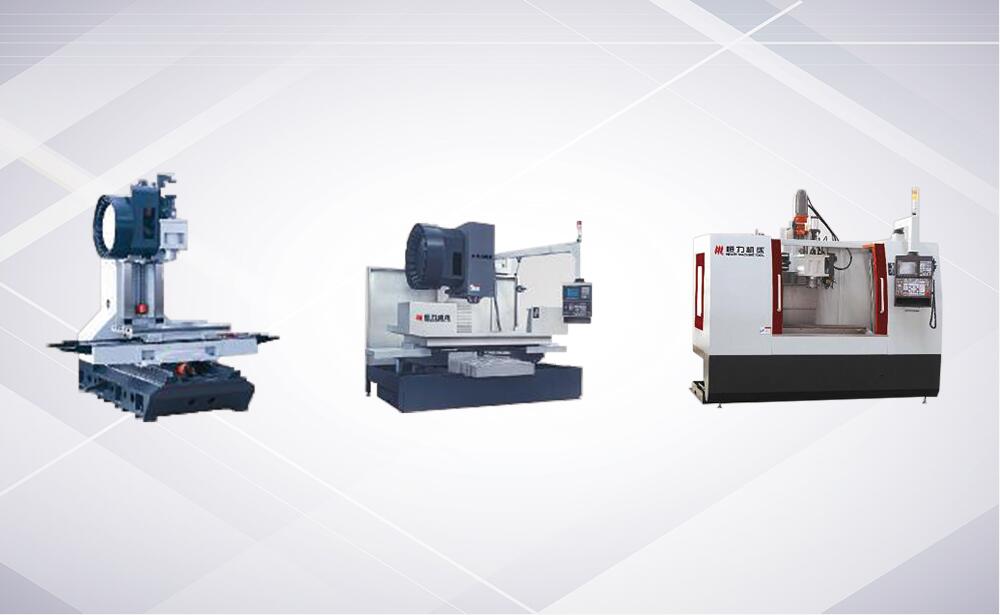

Vertical Machining Center

特別說明：產品圖片以及參數跟實際產品略有差異

定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。

庫存配送：有貨，全國送貨保障！

溫馨提示：本產品一經下單生產，非質量問題不支持退貨！

產品介紹

Vertical machining center parameter table

Project Unit VMC550 VMC630 VMC800
Ⅰ Ⅱ Ⅰ Ⅱ
Bench
Working desk size mm 550*1200 550*1500 630*1400 630*1600 800*2200
T-slot mm 5*18*100 5*18*100 7*18*100 7*18*100 7*18*1
Workbench maximum load kg 1000 1200 1200 1500 2000
Travel
X-axis travel mm 1200 800 1300 1100 1400
Y-axis travel mm 550 650 850
Z-axis travel mm 650 800 800
Spindle nose to table distance mm 200-850(customizable） 200-1000(customizable） 200-1000（customizable）
Spindle
Spindle speed rpm 6000 6000 6000
Spindle taper BT50 BT50 BT50
Main motor power Kw 15Kw 18.5Kw 22Kw
Spindle twist rejection n.m 95 117 141
Feed system
X-axis rapid movement m/min 32 32 32
Y-axis rapid movement m/min 32 32 32
Z-axis rapid movement m/min 32 32 32
Cutting feed rate mm/min 1-12000 1-12000 1-12000
X, Y, Z transmission motor power Kw 3/3/4 3/3/4 3/3/4
Track form Three-axis rail Three-axis rail Three-axis rail
? ? ? ? ? ? ? Accuracy
Full positioning accuracy mm 0.01 0.01 0.01 0.01 0.01
Repeatability mm 0.005 0.005 0.005 0.005 0.005
Automatic tool change system
Tool magazine capacity 24 24 24 24 24
Tool diameter (full knife) mm φ110 φ110 φ110 φ110 φ110
Maximum tool diameter (lead empty knife) mm φ250 φ250 φ250 φ250 φ250
Maximum?Tool length mm 300 300 300 300 300
Maximum Tool weight kg 15 15 15 15 15
Tool change time (knife to knife) sec 3 3 3 3 3
Air supply (use pressure) kg/cm2 6 6 6 6 6
Machine weight kg 9000 9000 10000 10000 12000
CNC system FANUC system、SIEMENS system、Mitsubishi system

Configuration list

Configuration list Z axis weight
Standard configuration working lamp
Spindle speed 6000RPM Warning Light
Spindle dust blowing system Electrical box heat exchange system
Tool cooling system M30 automatic disconnection system
Internal screw conveyor FANUC
Collecting car Optional configuration
Machine cleaning tank Spindle speed 8000RPM
Air cleaning gun Spindle Center Outlet System
Machine protection Spindle oil cooler
Oil and water separation system Infrared cutting knife detection system
Automatic tool exchange mechanism Three-axis screw hollow cooling system
Knife arm magazine 24T Three-axis grating
ZF gearbox
Fourth axis
